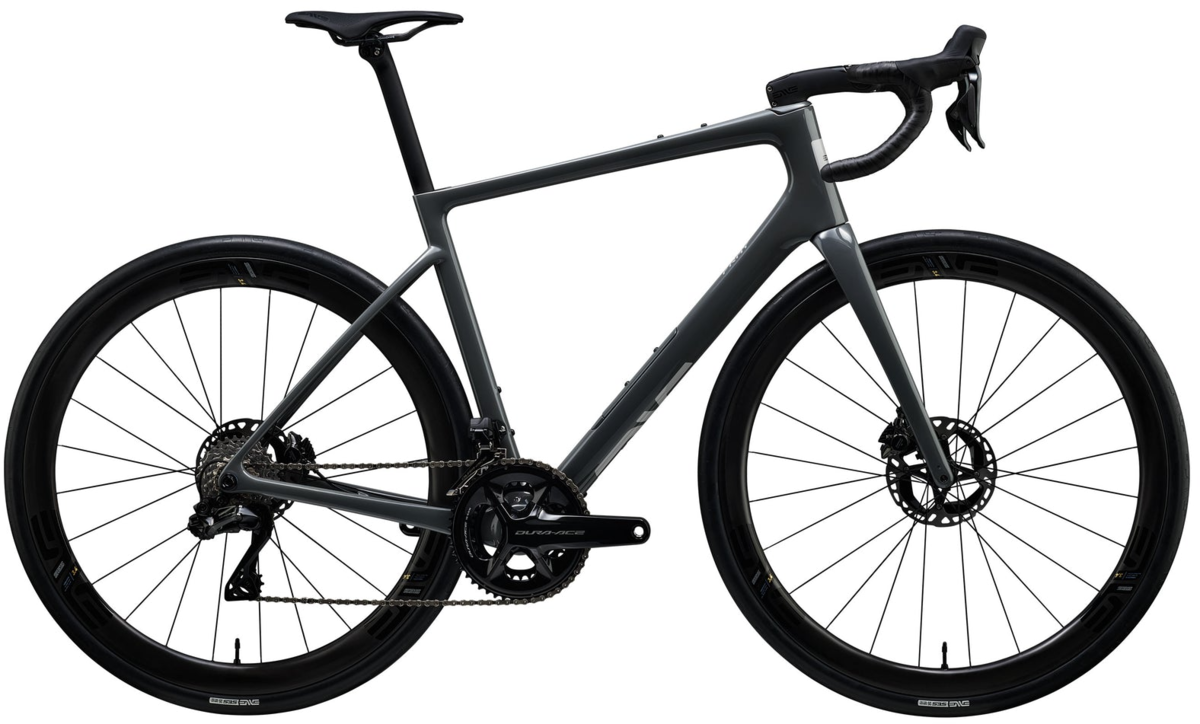

ENVE Composites Fray

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is typically sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

- Real-World Fast™ aero optimization
- Geometry optimized for 31mm - 35mm tires
- Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
- ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
- Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
- Aero tube shapes & design that complements SES rim shapes
- Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
- Frame Weight 900g (Size 56cm Painted, No Hardware)

REAL-WORLD FAST™
Developed in CFD and the wind tunnel, the Fray features refined tube shapes that have been tuned to complement our own SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the IN-Route System add to the Fray's slippery design.

Real-World Fast™ Defined:
- Balanced for aero efficiency and weight savings
- Tube shapes complement SES rim shapes
- Integrated Front-End hides wires and brake

INTEGRATED FOR SPEED
The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the IN-Route Aero Stem and your choice of IN-Route handlebar, the Fray capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

PERSONALIZE YOUR CHASSIS
An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

IN-Route System
The ENVE IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.

AERO SEATPOST
The Fray features an aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.

MATERIAL OPTIMIZED DESIGN (M.O.D.)
We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.

Optimized for All Roads
The Fray geometry is optimized around 31 to 35mm tires, though it can fit up to 40mm. Combined with progressive endurance geometry and the ENVE Cargo Bay for in-frame downtube storage, the Fray brings road race performance to those seeking a wider range of surfaces and terrain.

Threaded T47 Inboard-bearing bottom bracket
Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.

Cargo Bay Frame Storage
Borrowing from the MOG, the Fray also features ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
